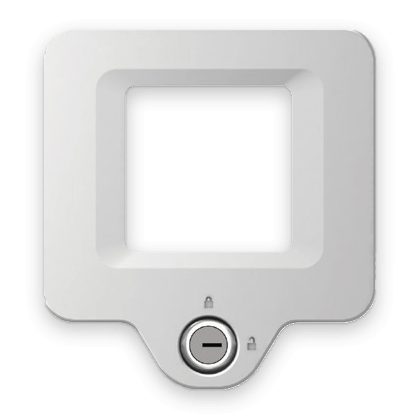

SFTHAPLOCK
Lock Ring
Premier Series
We have refreshed and upgraded our Premium thermostats. All Premium models now accept our Wi-Fi module to give you control of your comfort from anywhere
Residential Thermostats
Residential Models
- SFTHRPH742WFC
- SFTHRP742WFC
- SFTHRP121WFC
We are proud to introduce the new Premium series of residential thermostats. All Premium
thermostats offer simple as you want operation for the most basic users along with a
bi-color LED indicating the cooling or heating equipment is running. Operation is
switchable from auto to manual changeover and can be controlled using only the front
three buttons.
The Premium series of thermostats offers Fan, Program, and Outdoor buttons conveniently
located under the front cover along with additional advanced options and setup buttons
discreetly located under the bottom cover.
All Premium series thermostats come equipped with a backlit display through the use of
our soft LED light pipe design and can be adjusted for different lighting requirements,
such as a night-light in a dark hallway, or can be turned off entirely for a bedroom
location.
The Premium series residential thermostats are able to meet all of your HVAC control
needs for Gas/Electric, Heat Pump, and Dual Fuel equipment using industry leading
design, features, and pricing.
Standard Features
- Programmable
- Easy to read, Backlit Display
- Adjustable backlight intensity
- Customizable scrolling marquee with English, Spanish, and French language support
- Customizable service alerts and error messages
- Switchable manual or auto-changeover
- Morning, day, evening, and night time periods
- Outdoor sensor ready
- WiFi Module compatible
- Wireless accessories
- Service filter reminder
- UV lamp replacement reminder
- Aux heat indicator
- Random start
- Dual units (F or C)
- Input for condensate overflow sensor

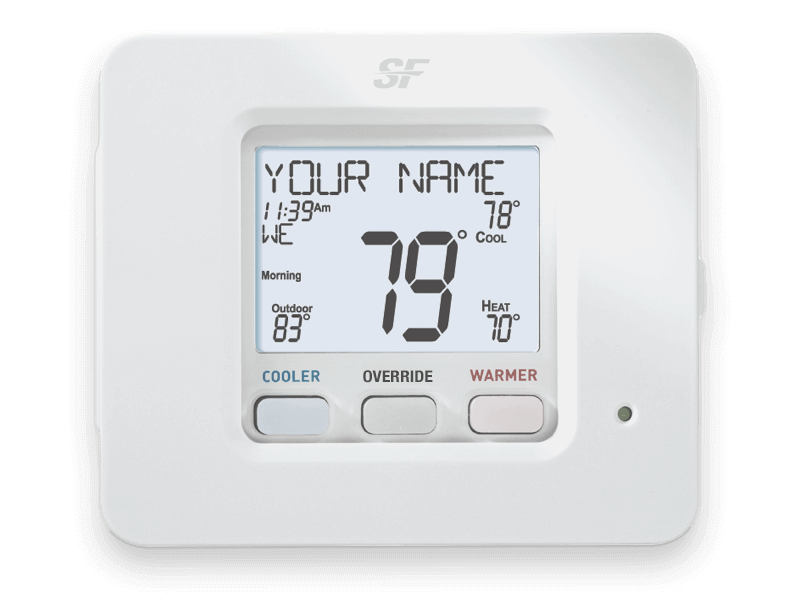

Commercial Thermostats
Commercial Models
- SFTHCPH742WFC
- SFTHCP742WFC
- SFTHCPH022WFC
We are proud to introduce the new Premium series of commercial thermostats. All Premium
series commercial thermostats can be controlled using only the front three buttons and
feature a bi-color LED indicating the cooling or heating equipment is running.
Adding security to a commercial thermostat has never been easier with the Premium series
commercial thermostat allowing up to three levels of lockout to prohibit mode and
program changes and limited setpoint adjustment. For complete security the optional
Lockring can be installed in seconds without removing the thermostat from the wall. The
Lockring allows the user to have limited setpoint adjustment and after-hours override
control, or complete security with all buttons rendered inactive.
The high-end commercial thermostat allows you to average up to eight Premium or wireless
indoor remote sensors and features an ECON terminal that outputs 24v during occupied
time periods, useful for auxiliary fans, outdoor air dampers, and more.
Standard Features
- Easy to read, Backlit Display
- Adjustable backlight intensity
- Customizable scrolling marquee with English, Spanish, and French language support
- Customizable service alerts and error messages
- Switchable manual or auto-changeover
- Outdoor sensor ready
- WiFi Module compatible
- Wireless accessories
- Service filter reminder
- UV lamp replacement reminder
- Aux heat indicator
- Random start
- Dual units (F or C)
- Input for condensate overflow sensor
| Feature | SFTHRPH742WFC | SFTHRP742WFC | SFTHRP121WFC |
|---|---|---|---|
| Backlit display |  |
|
|
| Aux Heat Indicator | |
|
|
| Outdoor Sensor Ready | |
|
|
| Accepts RF Module for wireless Remote Sensors | |
|
|
| Wall plate available (model SFTHAPWP) | |
|
|
| Accepts Wi-Fi Module | |
|
|
| 4 Heat / 2 Cool | |
|
 |
| 2 Heat / 1 Cool | |
|
|
| 1, 5+2 or 7-day programmable | |
|
|
| Single day or Non-Programmable | |
|
|
| Dual Fuel Capable | |
|
|
| Remote Sensor Ready | |
|
|
| Single day or Non-Programmable | |
|
|
| Auto or Manual Changeover | |
|
|
| Controls Humidification, Dehumidification & Reheat | |
|
|
| Programmable Output for Free Cooling, Ventilation, and more | |
|
|
| Feature | SFTHCPH742WFC | SFTHCP742WFC | SFTHCPH022WFC |
|---|---|---|---|
| Backlit display | |
|
|
| Aux Heat Indicator | |
|
|
| Outdoor Sensor Ready | |
|
|
| Accepts RF Module for wireless Remote Sensors | |
|
|
| Wall plate available (model SFTHAPWP) | |
|
|
| Accepts USB Programmer for easy programming and error message displays | |
|
|
| 4 Heat / 2 Cool | |
|
|
| 2 Heat / 1 Cool | |
|
|
| 3 occupied time periods | |
|
|
| Non-programmable | |
|
|
| Setpoint Limiting | |
|
|
| Light Activation Equipped | |
|
|
| Remote Sensor Ready | |
|
|
| Controls Humidification, Dehumidification & Reheat | |
|
|
| Light Activation Equipped | |
|
|
| Economizer Control | |
|
|
| Preoccupancy Fan Purge | |
|
|
| Programmable Output for Free Cooling, Ventilation, and more |
SFTHAPWIFI
Wi-Fi Module
Wi-Fi Module
SFTHRPH121WFC
SFTHRPH742WFC
SFTHRP742WFC
SFTHCP742WFC
SFTHCPH022WFC
SFTHCPH742WFC
SFTHAPWIFI
Add-A-Wire
